The Clear Advantage: Why GFS Settling Tanks are the Gold Standard in Wastewater Treatment

Rincian produk
Tempat asal: CINA
Nama merek: CEC TANKS
Sertifikasi: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Nomor model: W
Syarat Pembayaran & Pengiriman
Kuantitas min Order: 1set
Harga: $5000~$20000 one set
Kemasan rincian: Pe poly-foam di antara masing-masing dua pelat baja; palet kayu dan kayu
Waktu pengiriman: 10-30 hari setelah setoran diterima
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 60 set per bulan

Informasi detil

Tempat asal CINA Nama merek CEC TANKS
Sertifikasi ISO 9001:2008, AWWA D103 , OSHA , BSCI Nomor model W
Dasar: Beton atau baja menyatu kaca Ketebalan pelat baja: 3mm hingga 12mm, tergantung pada struktur tangki
Atap tersedia: Atap baja yang menyatu kaca, atap membran, atap aluminium, atap GRP Mudah dibersihkan: Halus, mengkilap, lembam, anti-adhesi
Fitur: Ramah lingkungan, daya tahan Tersedia CAPACTIY: 20 m3 hingga 18.000 m3
Menyoroti:

GFS settling tanks for wastewater

,

glass fused steel settling tanks

,

wastewater treatment settling tanks

Deskripsi Produk

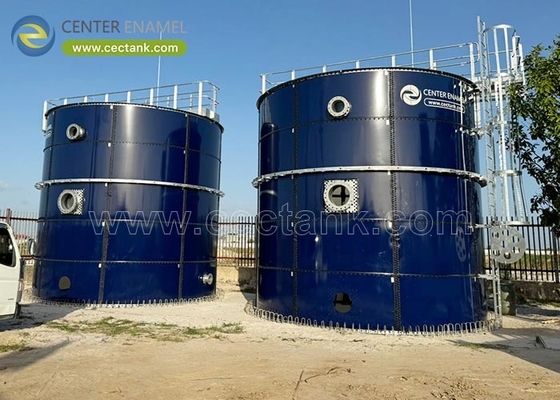

The Clear Advantage: Why GFS Settling Tanks are the Gold Standard in Wastewater Treatment



In the world of wastewater management, effective and efficient solid-liquid separation is not just a step—it's the foundation of a successful treatment process. Settling tanks, also known as clarifiers or sedimentation tanks, are at the core of this critical operation. While traditional concrete or welded steel tanks have long been the standard, a new generation of storage technology is redefining durability, efficiency, and cost-effectiveness: Glass-Fused-to-Steel (GFS) settling tanks. ��



At Center Enamel, we don't just build tanks; we engineer a superior solution that leverages the best properties of two materials. By fusing a specialized glass coating to a high-strength steel plate at temperatures over 820°C, we create a composite material that offers the unyielding strength of steel with the supreme corrosion resistance of glass. This unique synergy is why our GFS settling tanks are rapidly becoming the preferred choice for municipal and industrial wastewater projects worldwide.



As a leading storage tank manufacturer worldwide. Center Enamel can provide Glass Lined Steel(GLS) tanks, fusion bonded epoxy tanks, stainless steel tanks, galvanized steel tanks and aluminum geodesic dome roofs, Wastewater and Biogas Project Equipments for global customers.



Configuration of Customized Storage Tanks
Storage tanks Volume Roofs Application Design Requirements

GLS Tanks

SS Tanks

Fusion Bonded Epoxy Tanks

Galvanized Steel Tanks

Welded Steel Tanks

<1000m³

1000-10000m³

10000-20000m³

20000-25000m³

>25000m³

ADR Roof

GLS Roof

Membrane Roof

FRP Roof

Trough Deck Roof

Wastewater Treatment Project

Drinking Water Project

Municipal Sewage Project

Biogas Project

Fire Water Storage Project

Oil Storage Project

Water Supply & Drainage System

Seismic Design

Wind Resistant Design

Lightning Protection Design

Tank Insulation Design





WasteWater Treatment Project Equipment Supply

Pretreatment Equipment Resource Utilization System Sludge Treatment System Other Equipment

Mechanical Bar Screen

Solid-liquid Separator

Submersible Mixer

Gas Holder

Boiler System

Boost Fan

Bio

gas Generator

Torch System

Dehydration and Desulfurization Tank

PAM Integration Dosing Device

Screw Sludge Dewatering Machine

Slurry Separation Centrifuge

Sewage Pump

Mud Scraper

Submersible Sewage Pump

Three-phases Separator

The Science of Sedimentation, Supercharged

A settling tank's primary function is simple: to use gravity to separate solid particles from liquid wastewater. As influent flows slowly into the tank, heavier solids sink to the bottom, forming a layer of sludge, while lighter materials rise to the surface as scum. The clarified water is then collected for subsequent treatment.



This foundational process is essential because it:



Reduces downstream load: By removing a significant portion of solids and organic matter, settling tanks reduce the work required for biological and chemical treatment processes, leading to higher efficiency and lower energy consumption.



Protects vital equipment: It prevents abrasive solids from clogging pipes, pumps, and other sensitive machinery, extending their lifespan and reducing maintenance costs.



Ensures environmental compliance: A well-functioning settling tank is the first line of defense against discharging harmful, untreated solids into the environment.



Why GFS Tanks Outperform the Competition

When you choose a Center Enamel GFS tank for your settling process, you're investing in a solution that delivers a clear advantage over traditional concrete and welded steel tanks.



1. Unmatched Corrosion and Chemical Resistance

Wastewater is an inherently corrosive environment, often containing aggressive chemicals, biological agents, and dissolved gases like hydrogen sulfide. Concrete tanks are susceptible to cracking and deterioration from chemical attack, while welded steel tanks are prone to rust, especially at the seams. Our GFS tanks, however, provide an inert, non-porous glass barrier that is highly resistant to a wide range of corrosive substances. This means the tank's structural integrity remains sound for over 30 years, minimizing the risk of leaks and environmental contamination.



2. Rapid and Cost-Effective Installation

GFS tanks are a modular, bolted solution. The prefabricated panels are manufactured under strict quality control in our factory and then shipped to the site for assembly. This process is significantly faster than the lengthy on-site construction of concrete tanks, which is subject to weather delays, or the labor-intensive welding of steel tanks. A streamlined installation means a shorter project timeline, reduced labor costs, and a quicker path to operation.



3. Minimal Maintenance and Enhanced Hygiene

The smooth, glossy surface of our GFS tanks resists the buildup of sludge, algae, and other deposits. This anti-adhesion property makes cleaning and maintenance much easier and less frequent compared to the rougher, more porous surfaces of concrete or un-coated steel. The reduced need for maintenance translates directly into lower operational costs over the tank's long lifespan.



4. Durability and Structural Integrity

GFS tanks combine the compressive strength of steel with the durability of a fused coating. This creates a resilient structure capable of withstanding both the internal pressures of a full tank and external forces. Unlike concrete, which can crack with ground movement or freeze-thaw cycles, the inherent flexibility of bolted steel allows GFS tanks to adapt without compromising their integrity.



5. Flexibility for a Growing Future

Our modular design offers unparalleled adaptability. The tanks can be easily expanded in capacity by simply adding more panels, or they can be disassembled and relocated if a facility's needs change. This flexibility is impossible with a rigid concrete structure, making GFS tanks a future-proof investment.



A Global Leader You Can Trust

Center Enamel has a proven track record of delivering superior containment solutions for water and wastewater projects in more than 100 countries. Our GFS tanks are designed and manufactured to rigorous international standards, including AWWA D103-09, NSF/ANSI 61, and ISO 28765, demonstrating our unwavering commitment to quality and safety.



By choosing our GFS settling tanks, you are selecting a product that embodies durability, cost-effectiveness, and sustainability. It's a strategic investment that not only optimizes your treatment process but also contributes to a cleaner, safer, and more sustainable world.
