Stainless steel landfill leachate tanks from Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) provide long‑life, high‑integrity containment for some of the most aggressive liquids in the environmental sector. These modular bolted tanks are engineered to safely collect and store landfill leachate, protecting soil and groundwater while helping operators meet tightening regulatory requirements and sustainability targets.

As a leading storage tank manufacturer worldwide. Center Enamel can provide Glass Lined Steel(GLS) tanks, fusion bonded epoxy tanks, stainless steel tanks, galvanized steel tanks and aluminum geodesic dome roofs, Wastewater and Biogas Project Equipments for global customers.

WasteWater Treatment Project Equipment Supply

Why Landfill Leachate Demands Robust Containment

Landfill leachate is a highly contaminated liquid formed when precipitation and surface water percolate through municipal and industrial waste. It typically contains a complex mix of organic pollutants, ammonia, salts, heavy metals, and trace hazardous compounds, with variable pH and elevated chemical oxygen demand (COD). If not properly contained and managed, leachate can migrate into surrounding soil and aquifers, posing risks to drinking water supplies, ecosystems, and public health, and triggering significant regulatory and liability exposure for site owners.

As modern landfills shift toward engineered containment and controlled treatment, above‑ground leachate storage tanks have become central components of integrated leachate management systems. These tanks must withstand not only the internal corrosive environment but also external loads from wind, seismic activity, and site operations, often in constrained or uneven landfill surroundings. Stainless steel bolted tanks are particularly well suited to this mission due to their structural strength, corrosion resistance, and adaptability.

Center Enamel’s Expertise and Global Footprint

Center Enamel is a global bolted‑tank specialist whose product range covers Glass‑Fused‑to‑Steel (GFS), fusion bonded epoxy, stainless steel, galvanized steel tanks, and aluminum geodesic dome roofs for applications including drinking water, industrial wastewater, sewage, biogas, fire‑water storage, dry bulk, and leachate management. The company operates under certified quality systems and designs its tanks in accordance with key international standards such as ISO 9001, EN1090, ISO 28765, NSF/ANSI 61, WRAS, FM, LFGB, BSCI, and ISO 45001, as well as AWWA D103 and related structural and safety codes for factory‑coated and stainless steel bolted tanks.

With successful projects delivered in more than 100 countries, Center Enamel has accumulated extensive experience in demanding sectors like industrial wastewater and landfill leachate, including reference projects where bolted tanks form part of large‑scale environmental infrastructure. This global footprint gives landfill owners and EPC contractors confidence in Center Enamel’s ability to meet both technical and documentation requirements across diverse regulatory regimes.

Why Stainless Steel for Landfill Leachate Storage

Landfill leachate presents a combination of challenges that can rapidly degrade unprotected or poorly specified storage structures: variable pH, high chloride content, elevated salinity, complex organics, and potential for scaling or precipitation. Stainless steel offers several key advantages for leachate tanks:

• High resistance to corrosion from a wide range of organic and inorganic compounds, including many of the salts and chemicals commonly present in landfill leachate.
• Structural resilience and elasticity comparable to carbon steel, enabling designs that safely handle internal liquid loads, thermal cycling, and environmental loads over long service lives.
• Smooth, non‑porous wetted surfaces that limit absorption, reduce fouling, and facilitate inspection and cleaning compared with unlined concrete or basic steel structures.

In specific projects, stainless steel tanks may also incorporate internal polymer linings or barrier layers where extremely aggressive leachate chemistries or special client specifications require additional protection. Case examples from other landfill operators show stainless steel tanks successfully lined with HDPE sheets on the inside, allowing the system to cope with high pollutant concentrations while retaining the structural benefits and access flexibility of stainless steel construction.

Design Principles of Stainless Steel Landfill Leachate Tanks

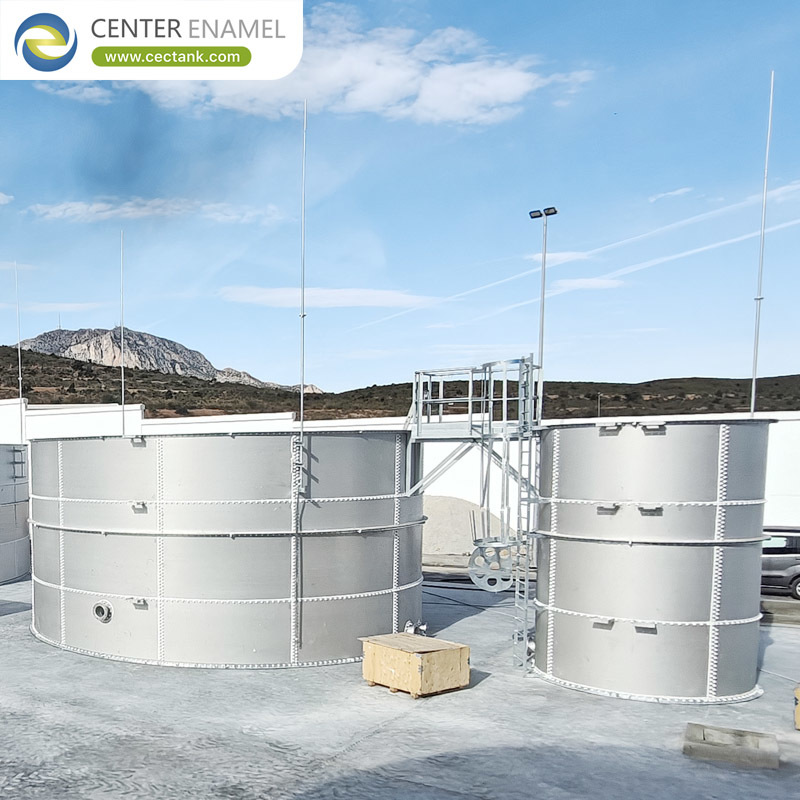

Center Enamel’s stainless steel landfill leachate tanks are typically configured as cylindrical bolted structures assembled from factory‑fabricated stainless steel panels. This modular design supports a broad capacity range and allows site‑specific configuration for height, diameter, and layout within landfill footprint constraints.

Key design aspects include:

• Corrosion‑resistant tank body: Panels manufactured from appropriate stainless steel grades (such as SS304/SS316), with thickness and stiffening selected according to design pressure, height, and local wind/seismic loads.
• Concrete foundations: Tanks are generally installed on engineered concrete foundations or slabs, designed to accommodate sub‑base conditions within the landfill environment and transmit loads safely to the ground.
• Roof and access design: Options include closed roofs to limit odors and emissions, with manways, inspection ports, and safety walkways designed for safe access and inspection. Roof configurations are matched to downstream treatment or tanker loading requirements.
• No internal coating required: In many leachate chemistries, stainless steel can operate without additional internal coatings, simplifying maintenance and eliminating the risk of coating failure. Where specified, compatible linings or topcoats can be incorporated.

All structural design is carried out in line with applicable codes and guidelines for bolted steel tanks, including requirements for liquid storage, uplift, and detailed connection design, as well as leachate‑specific considerations such as redundancy in overflow and drainage provisions.

Operational Features for Safe Leachate Management

Effective landfill leachate management relies not only on robust tank structure but also on well‑engineered operational features. Stainless steel tanks from Center Enamel can be configured with:

• Inlet and outlet arrangements that support gravity or pumped transfer from leachate collection systems, sumps, or wells and onward to treatment facilities or tanker loading bays.
• Level measurement and control to prevent overfilling, with options for radar, ultrasonic, or float‑based devices and integration with SCADA or local control systems.
• Ventilation and gas control for enclosed tanks, addressing any accumulation of volatile compounds or landfill‑related gases, and aligning with local safety and environmental guidance.
• Secondary containment integration, where tanks are installed within bunds or containment areas that comply with site‑specific environmental protection requirements.

These features help operators comply with best practices for leachate and landfill gas management, including relevant environmental agency guidance for leachate storage, overflow prevention, and hazard mitigation.

Capacity and Configuration Flexibility

Landfill leachate volumes can vary significantly over time due to rainfall, waste composition, and operational practices. Stainless steel bolted tanks are well suited to these changing conditions, with capacities that can be tailored from relatively small equalization tanks up to large multi‑thousand‑cubic‑meter storage units.

Because the tanks are modular, it is straightforward to:

• Install multiple tanks in parallel to separate raw leachate, partially treated leachate, or different leachate “ages”.
• Phase capacity additions as landfill cells are developed or as regulatory requirements evolve.
• Combine stainless steel leachate tanks with other tank types (such as GFS tanks) across the same site for different fluids, while maintaining a consistent design and quality standard.

This flexibility allows landfill owners to design systems that meet current needs while preserving options for future expansion without major civil modifications.

Advantages over Conventional Storage Options

Compared with non‑engineered lagoons, basic PE tanks, or unlined concrete tanks, stainless steel landfill leachate tanks offer several clear benefits:

• Enhanced environmental protection: Engineered, gas‑tight, and liquid‑tight tanks dramatically reduce the risk of seepage and uncontrolled emissions, supporting compliance with environmental permits.
• Longevity and reliability: Stainless steel construction paired with proper design and periodic inspection provides a long service life even under harsh leachate conditions, reducing lifecycle costs and unplanned outages.
• Compact footprint and vertical storage: Tall cylindrical tanks occupy less ground area than lagoons, critical for land‑constrained sites or where landfill expansion area is limited.
• Ease of inspection and maintenance: Manways, internal access, and smooth walls simplify regular inspections and cleaning strategies recommended by leachate management best practices.

For landfill operators facing tightening environmental expectations, stainless steel bolted tanks provide a high‑performance alternative that aligns with sustainable waste‑management strategies and reduces risk exposure.

Integration with Treatment and Transfer Systems

Stainless steel landfill leachate tanks from Center Enamel can be integrated seamlessly into wider leachate treatment and transfer schemes, including:

• Equalization before biological or physico‑chemical treatment plants.
• Buffer storage prior to off‑site tanker haulage.
• Intermediate storage for permeate, concentrate, or partially treated leachate in multi‑stage treatment processes.

By providing reliable, high‑integrity storage at each critical point, the tanks help smooth hydraulic and quality variations, improving treatment performance and allowing operators to respond to storm events or operational disruptions without uncontrolled discharges.

Partnering with Center Enamel for Landfill Leachate Projects

Drawing on its experience in industrial wastewater, municipal sewage, and landfill‑related storage projects, Center Enamel supports clients through concept development, detailed design coordination, fabrication, installation guidance, and after‑sales service for stainless steel leachate tanks. Tank solutions can be customized for capacity, configuration, roof design, insulation, and instrumentation to match local climate, regulatory constraints, and site‑specific risk assessments.

For landfill owners, operators, and engineering consultants seeking a resilient, code‑compliant, and future‑proof solution for landfill leachate storage, stainless steel tanks from Center Enamel offer a compelling combination of durability, environmental security, and operational flexibility that supports long‑term, sustainable landfill management.
